Name: S&amp;S Cycle 510 Cam Kit For Harley Twin Cam
Brand: Cycle Gear
SKU: cycle-gear-21274
Availability: InStock

S&S Cycle 510 Cam Kit For Harley Twin Cam

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

66 People watching this product now!

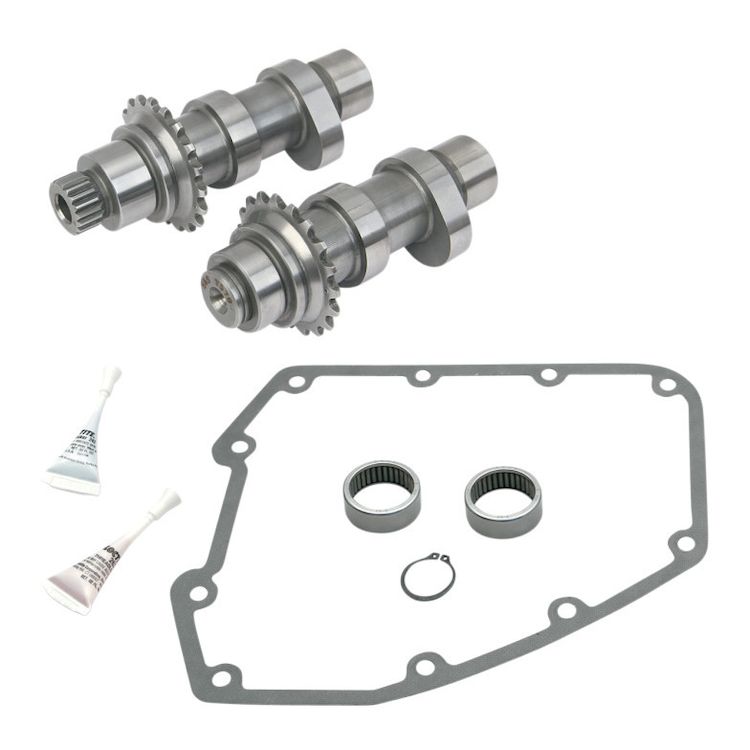

S&S 510 Cam Kit For Harley Twin Cam Features: Available in chain or gear drive versions The S&S Camshaft Gear Drive Kit increases valve timing accuracy by eliminating timing chain lash and the loosely fit stock cam gears This is accomplished by replacing the stock cam drive sprockets and chain with light press fit S&S gears Because the chain, chain guides, and tensioner are eliminated, there is no longer a possibility for these parts to fail and damage other parts The S&S Camshaft Gear Drive Kit reverses the rear cam’s direction of rotation, providing additional operating clearance between cam lobes As a result, higher cam lifts are possible with the gear drive kit Originally designed as a bolt-in, high-torque cam for 88″-103″ motors with compression ratios below 9.7:1 Strongest response from 3000 to 5500 RPM Intake open/close 20°/38° Exhaust open/close 52°/20° Intake duration 238° Exhaust duration 252° Lift .510″
