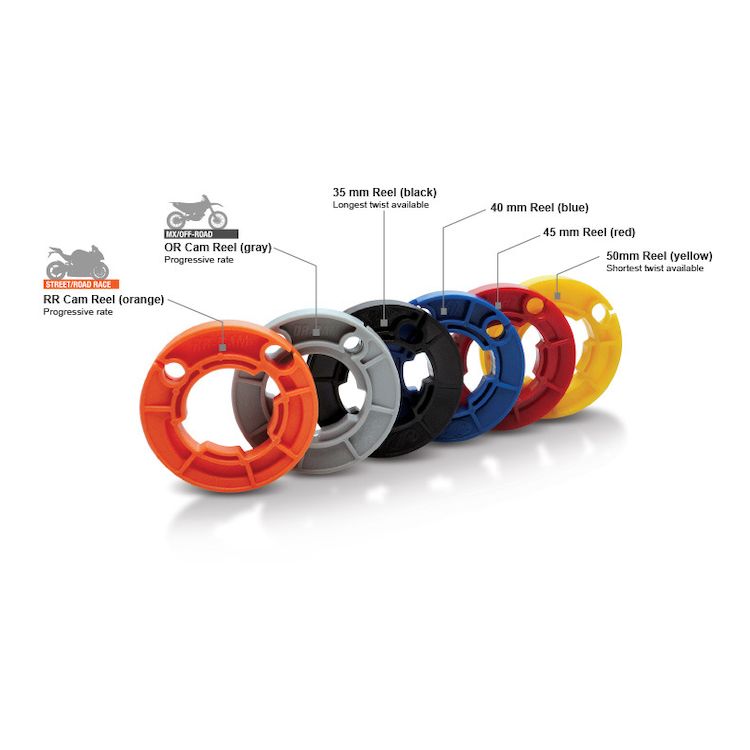

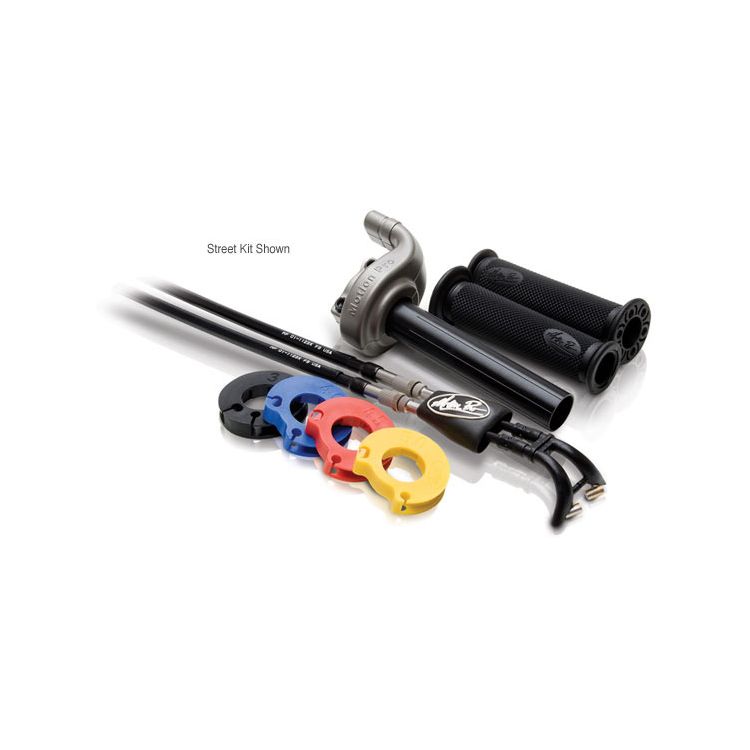

Motion Pro Rev2 Variable Rate Throttle Kit The second generation of MotionPro’s innovative reel changing system lets you tailor the throttle rate to riding conditions and rider preference. The Rev2 throttle includes several different size reels that will change how much twist is necessary for the throttle to completely open the carbs or throttle bodies on a motorcycle. The larger the reel is, the shorter the twist. Each reel size will shorten the twist by about 10 degrees. If your stock throttle has a 40mm reel and stock twist is 90 degrees (1/4 turn), the 45mm reel will reduce the twist to 80 degrees and the 50mm reel will reduce it to 70 degrees. The 35mm reel will increase the throttle twist to approximately 100 degrees. This is just an example; every model of motorcycle is different. The included cam reel has a progressive profile that allows the throttle to act like a sensitive, long twist throttle during the initial small throttle openings for precise control and then acts like a more aggressive short twist throttle at large throttle openings, progressively shortening the amount of twist needed to reach full throttle. Features: Ultra-compact housing with snap-together elbows make it easy to install and change reels Requires less handlebar space for lever clearance and throttle position Use smaller reels for slower throttle rate and larger reels for faster throttle rate Included cam reel provides progressive throttle response preferred by some riders Cable boot keeps dirt and dust out for reliable and smooth operation Billet aluminum in-line cable adjusters for easy installation and adjustment Lower section of cables use 5 mm housing with PTFE liner for reduced friction, increased routing flexibility and lighter weight Upper section of cables use 6 mm housing to provide solid support of adjusters Kits Include: Complete Rev2 Throttle Assembly with throttle tube (MX/Off-road kits Include Titan Throttle Tube) Bike specific high-quality Motion Pro black vinyl cables 5 interchangeable reels: 35, 40, 45, 50mm and cam reel Pair of Motion RoadControl Grips for street kits and DirtControl grips for off road kits Rev2 Throttle Equipped decal set Printed color instructions
